PB23000 SERIES

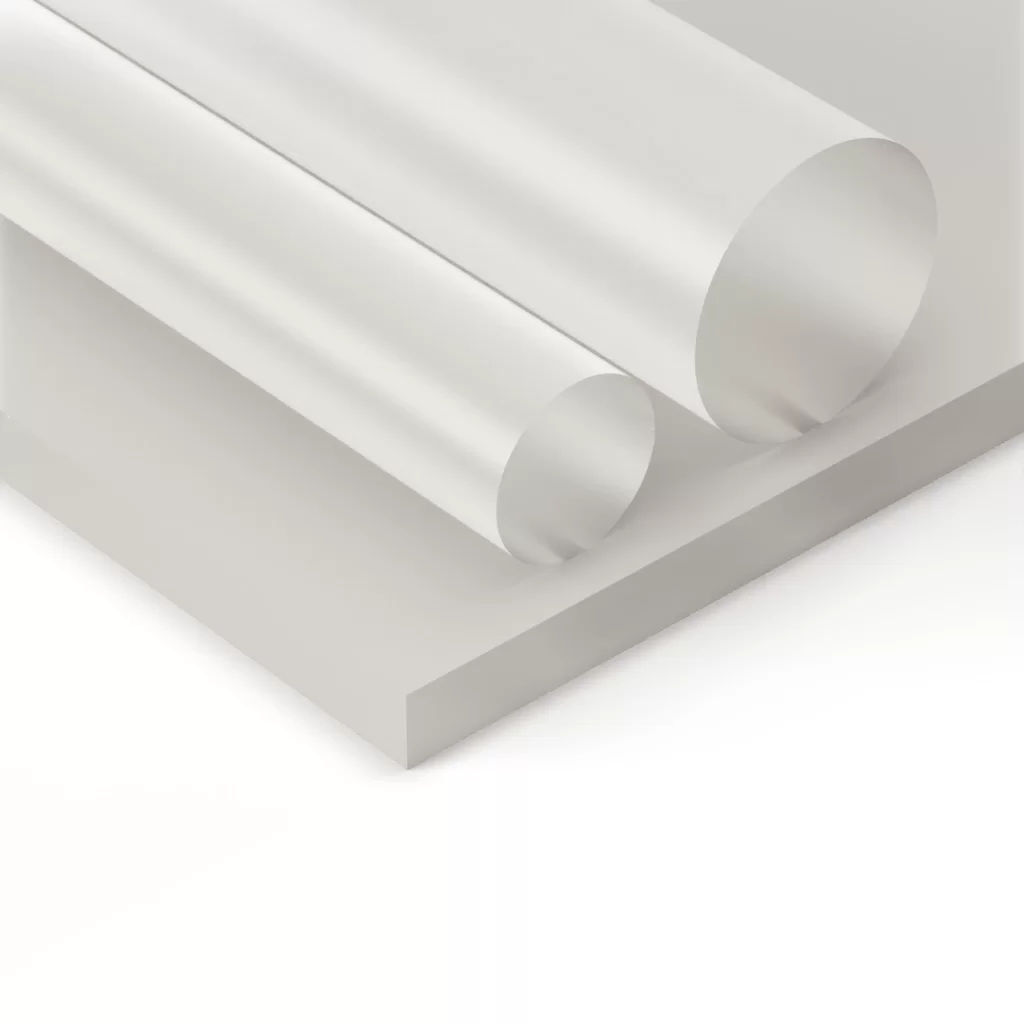

PCTFE

PolyCloroTriFluoroEthylene (PCTFE) is a melt-processable homopolymer in which one fluorine atom of the PTFE structure is substituted by a chlorine atom.  This atom replacement gives some advantages to PCTFE such as transparency, lower gas permeability, and higher mechanical strength to the detriment of a higher coefficient of friction over PTFE.

The amount of crystallinity of PTCFE may be controlled by its thermal history, especially the cooling speed during processing. High crystalline PCTFE is denser and has high mechanical strength and low elongation, whereas low crystalline PCTFE has a lower density, is more elastic, and optically clear. Our PB23000 materials meet the requirements of ASTM D1430.

PBY Material Codes:

PB23000D - PCTFE

Order Material

PCTFE Spec. Summary


Property Test Method Units PCTFE
Color - - Translucent to White
Specific Gravity ASTM D792 - 2.100 - 2.150
Hardness Shore D ASTM D2240 - 76 - 86
Tensile Strength, min. ASTM D638 PSI [MPa] 5,000 [34.5]
Elongation at Break, min. ASTM D638 % 100
Tensile Modulus, min. ASTM D638 PSI [MPa] 171,000 [1179]
Service Temperature High - °F [°C] 356 [180]
Service Temperature Low - °F [°C] -427 [-255]
Second Melt Peak Temp. ASTM D3418 °F [°C] 413 [212]
Glass Transition Temp. ASTM D3418 °F [°C] 113 [45]

PCTFE Material Properties


  • Cold Flow Resistant

  • Very low outgassing and permeation

  • Zero moisture absorption

  • Excellent chemical resistance

  • Radiation Resistance

  • Common Brands: Neoflon® Kel-F® Aclon®

Typical Applications for PCTFE Plastics


  • Chemical Processing Components

  • Cryogenic Components

  • Gaskets and Seals

  • Aerospace pump parts, valve seats, impellers

  • Lab instruments

  • Nuclear Service components and high radiation exposure components

  • Liquid oxygen and liquid nitrogen valve linings

PCTFE Requirements


This product meets ASTM D1430 Group 1 Class 1 Grade 3, AMS 3645 and 3650 requirements

PCTFE Material Data Sheet Downloads


PB23000D - Material Data Sheet

PCTFE Spec. Compliance


AMS 3650
AMS 3645
ASTM D1430 G1 C1 G3

References


  • Wypych, George. Handbook of Polymers. 2nd Ed., ChemTec/Publishing, 2016.
  • Ebnesjjad, Sina. Fluoroplastics Vol1 & Vol2. 2nd Ed., Elsevier Inc., 2015.
  • Aerospace Materials Specifications for PTFE materials (AMS3678)
  • American Society for Testing and Materials (ASTM) Standards
