PB30000 SERIES

PEEK

PolyEtherEtherKetone (PEEK) is a strong and stiff material that is used in applications that require great performance at elevated temperature ranges. PBY's PB30000 series materials are used in areas such as automotive, aerospace, oil and natural gas, electronics, and FDA suitable environments. Applications requiring strength and stiffness as well as high ductility. Chemically resistant to aggressive environments, an ideal material for sterilization of medical and food contact applications.

PB30000 materials have raised the bar on high performance, easy to machine, application adaptable, stock shape materials. With the addition of hundreds of custom compounds, PB30000 materials have no limit as to the applications it can fulfill and do so with outstanding results!!

Different PEEK grades are available and they all meet the compression-molded requirements of ASTM D6262.

PBY Material Codes:

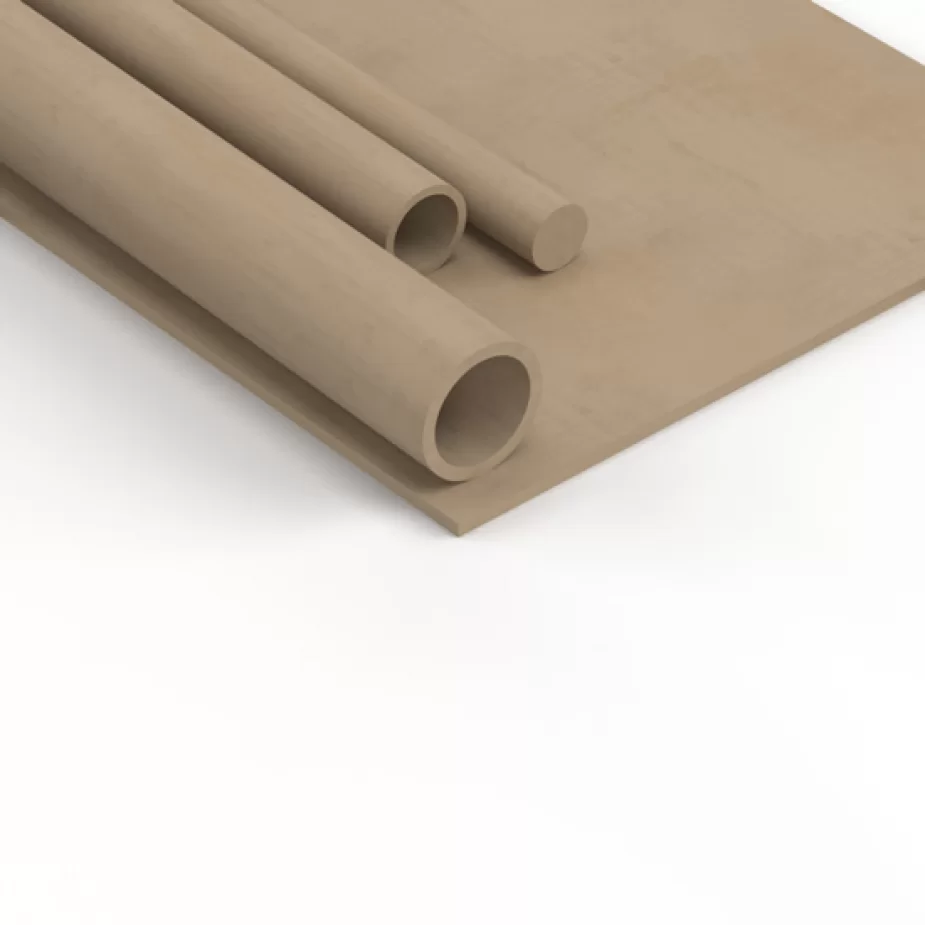

PB30003V - Virgin Peek

PB30201R - Peek 30% Carbon Fiber

PB30301V - Peek 30% Glass Fiber

PB30900R - Peek Bearing Grade

PEEK Properties


  • Strong Material

  • Hydrolysis resistant, autoclavable, chemical resistant

  • Ease of fabrication and machining

  • Good mechanical properties at elevated temperatures

  • Low toxic gas and smoke emissions when exposed to flame

  • Common Brands: TECAPEEK® SustaPEEK Ketron® Victrex®

Typical Applications


  • Semiconductor components

  • Aerospace parts

  • Seals, bearings, back up rings and bushings

  • Valve and Pump components

  • Down hole electrical connectors

  • Medical instrument parts

  • Food processing components

Requirements


PB30003V - Virgin Peek Meets ASTM D6262 Type 2 Class 1 Grade 1 requirements. This product is MIL-P-46183 compliant.

PB30201R - 30 Carbon Fiber Peek meets ASTM D6262 Type 2 Class 3 Grade 1 requirements.

PB30301V- 30 Glass Fiber Peek meets ASTM D6262 Type 2 Class 2 Grade 1 requirement.

PB30900R- Bearing Grade Peek meets ASTM D6262 Type 2 Class 4 Grade 1 requirement.

Downloads


PB30003V - Material Data Sheet

PB30201R - Material Data Sheet

PB30301V - Material Data Sheet

PB30900R - Material Data Sheet

Spec. Summary
Property Test Method Units Virgin Peek 30 Carbon Fiber Peek 30 Glass Fiber Peek Bearing Grade PEEK
Color - - Tan Black Dark Tan Black
Specific Gravity ASTM D792 - 1.260 - 1.340 1.360 - 1.440 1.460 - 1.540 1.410 -1.490
Hardness Shore D ASTM D2240 - 82 - 92 85 - 95 85 - 95 83 - 93
Tensile Strength, min. ASTM D638 PSI [MPa] 10,000 [69] 15,000 [103] 11,000 [76] 10,000 [69]
Elongation at Break, min. ASTM D638 % 2 1 1 1
Tensile Modulus, min. ASTM D638 PSI [MPa] 400,000 [2,758] 500,000 [3,448] 425,000 [2,930] 400,000 [2,758]
Service Temperature High - °F [°C] 599 [315] 599 [315] 599 [315] 599 [315]
Service Temperature Low - °F [°C] -40 [-40] -40 [-40] -40 [-40] -40 [-40]
Second Melt Peak Temp. ASTM D3418 °F [°C] 649 [343] 649 [343] 649 [343] 649[343]
Glass Transition Temp. ASTM D3418 °F [°C] 302 [150] 302 [150] 302 [150] 302 [150]

Spec. Compliance



REFERENCES


  • Wypych, George. Handbook of Polymers. 2nd Ed., ChemTec/Publishing, 2016.
  • Ebnesjjad, Sina. Fluoroplastics Vol1 & Vol2. 2nd Ed., Elsevier Inc., 2015.
  • Aerospace Materials Specifications for PTFE materials (AMS3678)
  • American Society for Testing and Materials (ASTM) Standards
